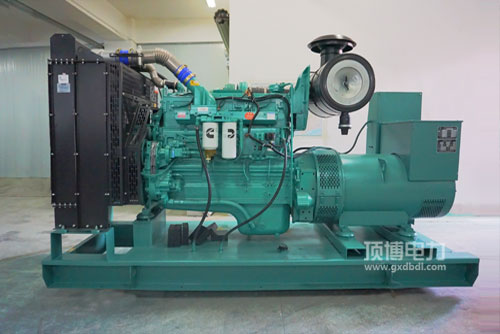

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用起驱力汽柴油经济能力性好: 为先进的汽柴油有效把握整体，代表性的STC、ESTC 划分有效把握整体，特种来设计的连杆顶部复燃室，高压低压发射汽柴油，有力吸雾，复燃有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用发起机瞬态效能表现出色: 很好的的发起机总布局构思，针对康明斯独有的EFC体统，调节高精准程度高，加载时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升工作功率高: 整体化方案狭窄.形壮分布适度，加载平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50无法中国国家非路段三时段.及美洲Tier2. Tier 3排放口政策法规规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必得性好， 热车机进行及定期检查护肤保养便利店加盟，的成本又。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率的范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯带发电用打火机的的特点：体积太小， 挤压比低， 防雨百叶水汽电加热，利于起动，位移车载式电源模块的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机材质	经常用到耗油率(kW)Prime Power	预留瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
